6 Factors That Affect Hydrocyclone Performance

August 19, 2022
Hydrocyclone performance may be measured differently depending on the application, but in all instances, cyclone performance is influenced by six factors.

Hydrocyclones, also simply called “Cyclones”, separate particles according to size and/or density using centrifugal force to accelerate the settling rate of solid particles. They are cylindrical-conical shaped devices with one entrance and two exits and consist of a feed box, feed inlet, vortex finder, optional feedbox extension, cone section(s) and spigot.

Cyclones are fed under pressure, causing the slurry to swirl around inside the cylindrical feed box. The swirling motion produces a vortex and an air core generated along the Cyclone center line. Coarse, heavy material is pulled toward the outer shell of the Cyclone, where it makes its way in a helical motion downward toward the underflow discharge at the bottom of the Cyclone. The fine, light material is pulled upward in a helical motion toward the overflow discharge at the top of the Cyclone.

cyclone-working2.jpg?mtime=20191007101417#asset:44579

Different applications have different requirements for Cyclone performance specifications. Depending on the application, performance could be measured by the particles that end up in the underflow or the particles that end up in the overflow.

For some applications, like those making C-33 concrete sand, Hydrocyclone performance is measured by the cut point, where the underflow is more important than the overflow. For other applications, such as minerals or hard rock, the separation efficiency is more of an indicator of Cyclone performance where the overflow, not the underflow, is more important.

In all instances, Cyclone performance can be affected by six factors, including:

  • Size
  • Flow rate
  • Inlet area
  • Vortex finder diameter
  • Underflow diameter
  • Length of Cyclone

3_cyclone-parts.png?mtime=20190307152206#asset:10708

Let’s take a look at how and why these factors affect Cyclone performance.

1. Size

The size of a Hydrocyclone plays a key role in its performance. Inside the Cyclone, each particle migrates to a position where the centrifugal force is equal to the drag force. If the centrifugal force is higher than the drag force, the particle has a higher chance of exiting out the underflow. If the centrifugal force is less than the drag force, the particle has a higher chance of exiting out the overflow.

2_Force.jpg?mtime=20190308094331#asset:10714

Think of it as the forces being in a tug of war, where the centrifugal and drag forces are at opposing ends of a rope and the particle is the flag in the middle. Team centrifugal force is trying to pull the particle flag toward the shell of the Cyclone, while team drag force is trying to pull the particle flag toward the air core at the center.

Separation occurs when the two forces are equal for a particle size and the particle gets to decide which way it wants to go, toward the shell and out the underflow or toward the air core and out the overflow. There’s a 50-50 chance for it to go one way or the other, so this is called the D50 or cut point.

The size of the Cyclone affects the amount of centrifugal force that is used for separation. The smaller the Cyclone radius, the more the centrifugal force has an effect on a particle, and the stronger that force is in the tug of war. The particles are pulled more toward the shell to create a smaller cut.

The larger the Cyclone radius, the less centrifugal force is available to win the tug of war, so the cut size is larger.

For primary sand production and desliming, larger Cyclones are recommended. Fines recovery applications typically employ smaller Cyclones and potentially multiple units to obtain the desired level of fines.

Takeaway: Smaller Cyclones produce a finer cut size, while larger Cyclones produce a coarser cut size.

2. Flow rate

Flow rate is another factor that plays a large role in Hydrocyclone performance. This deals with the pressure of the material that’s being fed to the Cyclone.

A low feed pressure results in a coarser cut, while a high feed pressure results in a finer separation. Pressure can be decreased by decreasing the flow rate, or it can be increased by increasing the flow rate.

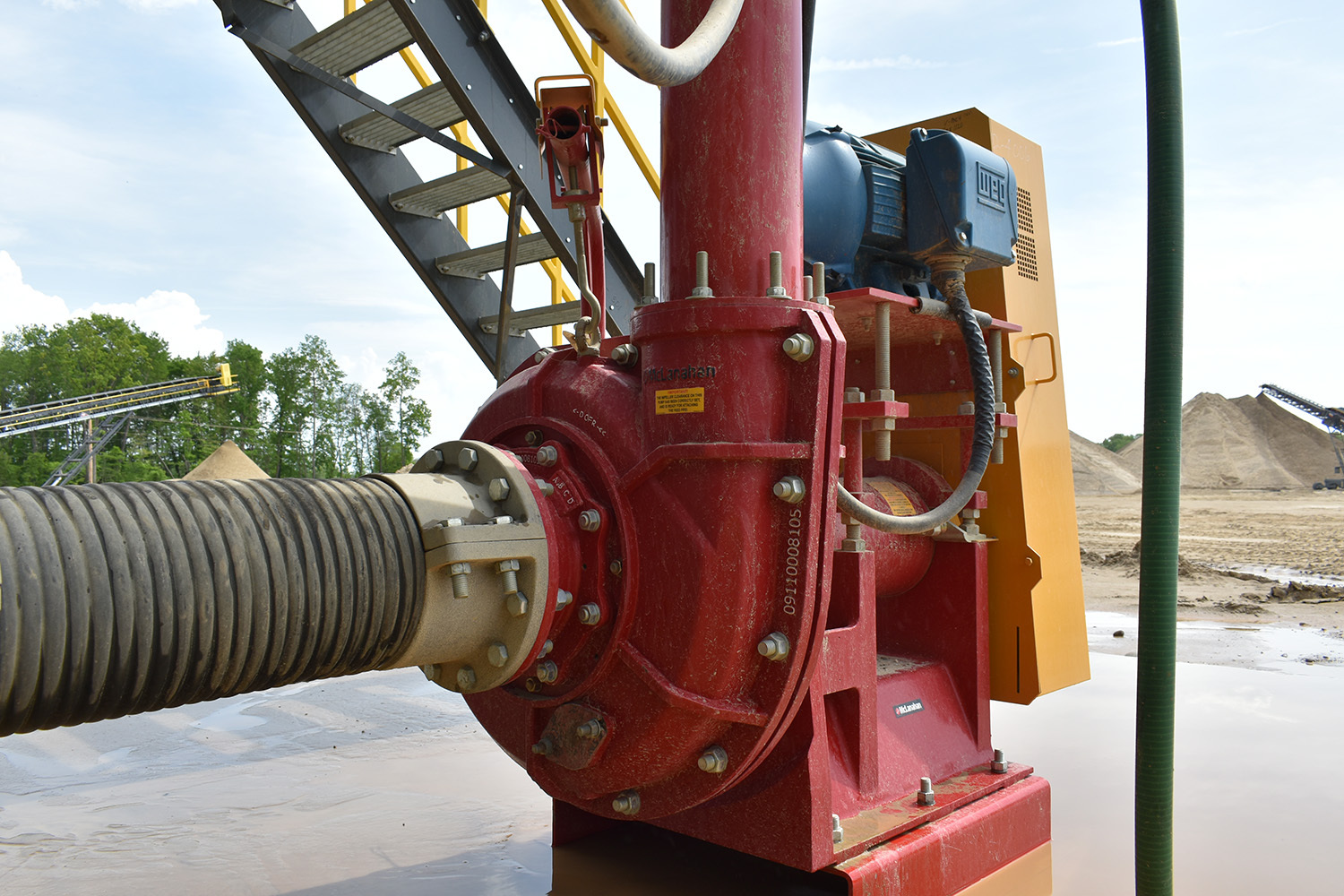

When optimizing the performance of Hydrocyclone, be it a coarser cut or finer cut, look to the Pump that’s feeding the Cyclone. The Pump provides the pressure necessary to effect separation in the Cyclone. Changing the speed of the Pump changes the pressure and flow rate.

slurry-pump.jpg?mtime=20190603133728#asset:41072

To make a coarser cut, decrease the speed of the Pump to decrease the flow rate and pressure. To make a finer cut, increase the speed of the Pump to increase the flow rate and pressure.

Takeaway: Low feed pressure produces a coarser separation, while high feed pressure produces a finer separation.

3. Inlet area

The size of the inlet area determines the capacity of the Hydrocyclone. Larger inlet sizes allow for higher throughput without having to change the pressure.

To increase or decrease capacity while operating at the same pressure, look to change the size of the inlet area.

Takeaway: Larger inlet sizes allow for a higher capacity, while smaller inlet sizes allow for a smaller capacity.

4. Vortex finder diameter

Similar to the inlet area, the vortex finder diameter can affect capacity and the cut point.

The vortex finder, which extends down partially in the center of the feed box, acts as a cutter. A larger diameter vortex finder allows more material to be pulled into the air core and out the overflow, creating a coarser cut. A smaller vortex finder allows less material to be pulled into the air core and out the overflow, creating a finer separation.

Changing the diameter of the vortex finder changes the pressure inside the Cyclone. A larger vortex area decreases the pressure, so more material goes into the overflow to create a coarser cut. A smaller vortex area increases the pressure, so more material goes into the underflow, creating a finer separation.

Takeaway: Large vortex finder diameter equals a coarser separation, while a small vortex finder diameter equals a finer separation.

5. Underflow diameter

The underflow diameter of the Cyclone’s apex needs to be matched to the tons per hour. If the apex is too small, the air core cannot form properly, and the underflow will rope. This is when the Cyclone is operating at its worst.

roping-3-copy.jpg?mtime=20220805101610#asset:75402

If the apex is too big, too much air will enter the Cyclone and a lot more water – and consequently, more fines – will come out the underflow, which affects the cut point.

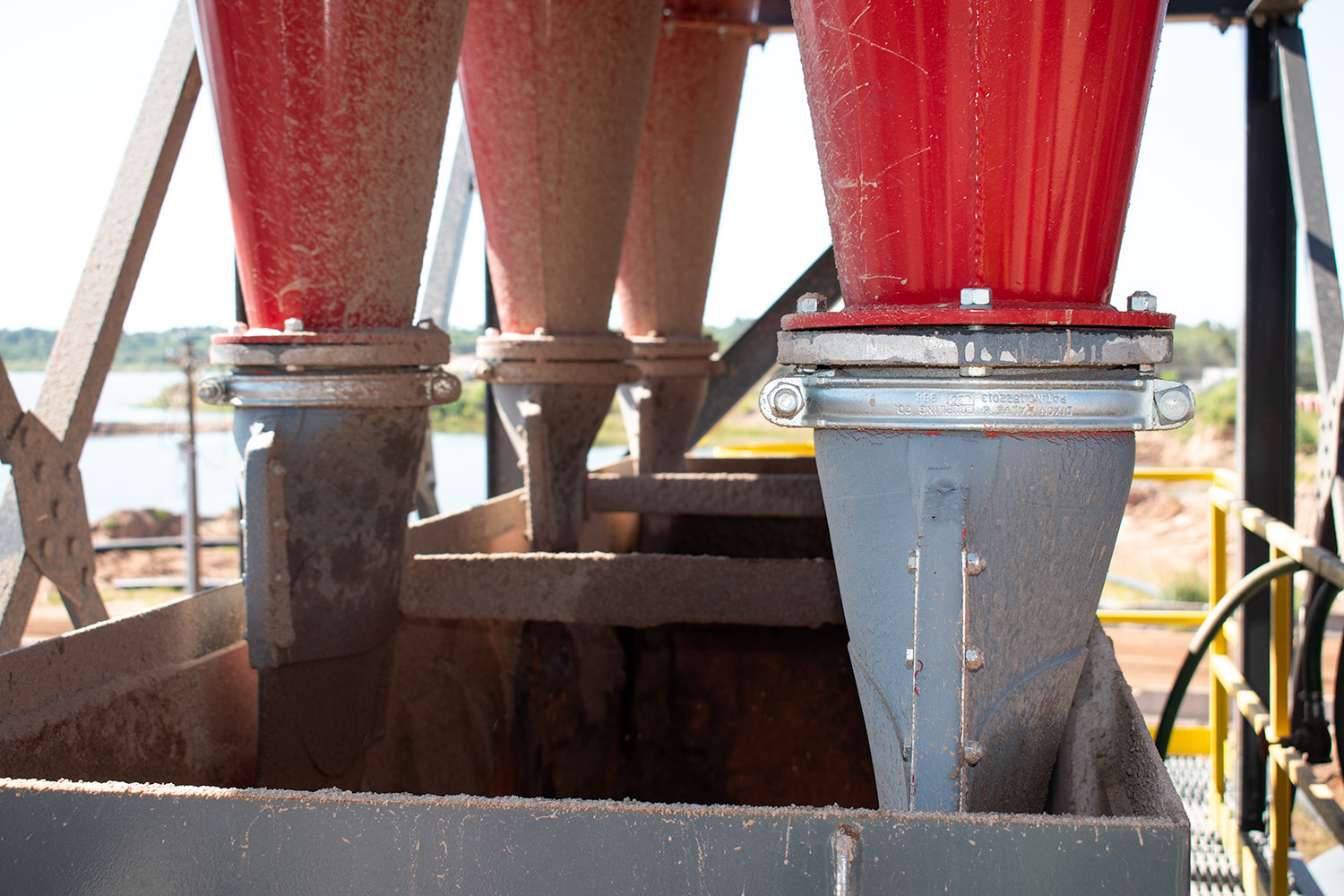

This is where Separators™ shine. Separators™ are modified Hydrocyclones with an underflow regulator on the apex (or spigot), an overflow pipe and siphon valve. They were developed to ensure constant underflow density even with varying feed solids, provide online control of underflow and cut size, ensure highest underflow density possible and to eliminate plugging of the apex.

4_cyclone-working.png?mtime=20190307152207#asset:10709

Most operators can’t keep a steady tons per hour, especially in dredge applications where the flow rate to the Cyclone and percent solids in the feed changes. With Separators™, the underflow regulator stays closed via the siphon and only opens with sufficient weight of solids.

separator-for-web.jpg?mtime=20220819134130#asset:75814

To reduce bypass material and increase the underflow concentration in Cyclone underflow, install a smaller apex. If coarse particles are in the overflow and the underflow discharge looks like an old rope, install a larger apex.

Takeaway: The apex must be sized to the tons per hour.

6. Length of Cyclone

The length of the Cyclone also affects its performance. Longer Cyclones allow for finer separations because the material has longer time in the Cyclone to decide which way it is going to go. Shorter Cyclones make coarser cuts because the material has less time in the Cyclone before discharge.

The length of a Cyclone is determined by the conical sections, or extended feedboxes, and cone angles. A 10-degree cone angle makes it a longer Cyclone, while a 40-degree cone angle makes it a shorter Cyclone. Adding extended feedboxes increases the length of the Cyclone.

Takeaway: Longer Cyclones make finer separations, while shorter Cyclones make coarser cuts.

Picture-069.jpg?mtime=20180809150644#asset:7621

To gauge the performance of a Hydrocyclone, measure the feed, overflow and underflow. Then, depending on the goals of the application, the performance can be improved accordingly by making changes to one or more of the components listed above.
